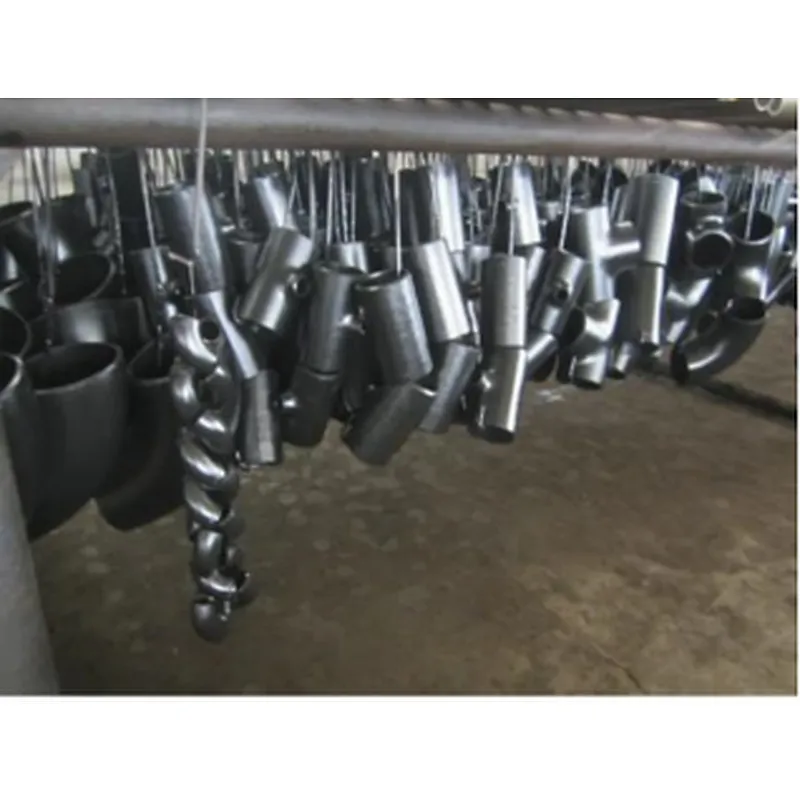

Tee

Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures.

Tee Type: Equal/Unequal Tee, Cross Tee, Socket Tee, Short Tee, Forging Tee
Material: Carbon Steel --- ASTM A234 WPB/WPC, ANSI B 16.9, ASTM A105/A106/A53,
                                               API 5L GR.B/A671-CC-70/A515-50/A135-A/A179-C
                  Stainless Steel --- ASTM 403 304/304L,316/316L,316Ti,321,317L,310S
                  Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91
Specification: NPS from 1/2'' to 36'', DN from 15 to 900,
                          WT: 2-80mm, SCH 40/80/XXS
Surface: Light Oiling, Black Painting
Packing: Packed in Wood Cabins/ Wood Tray
