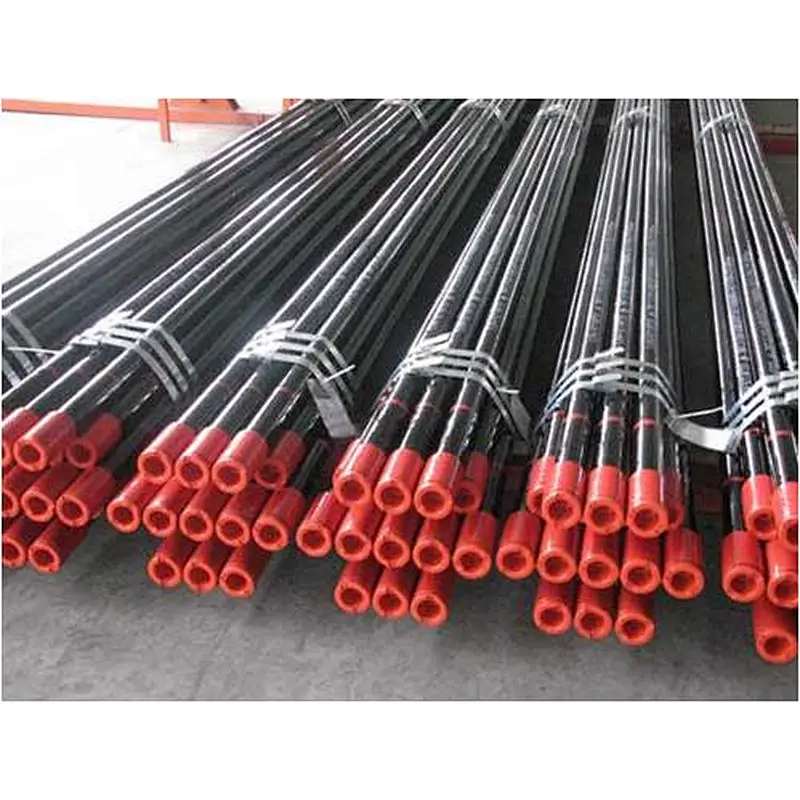

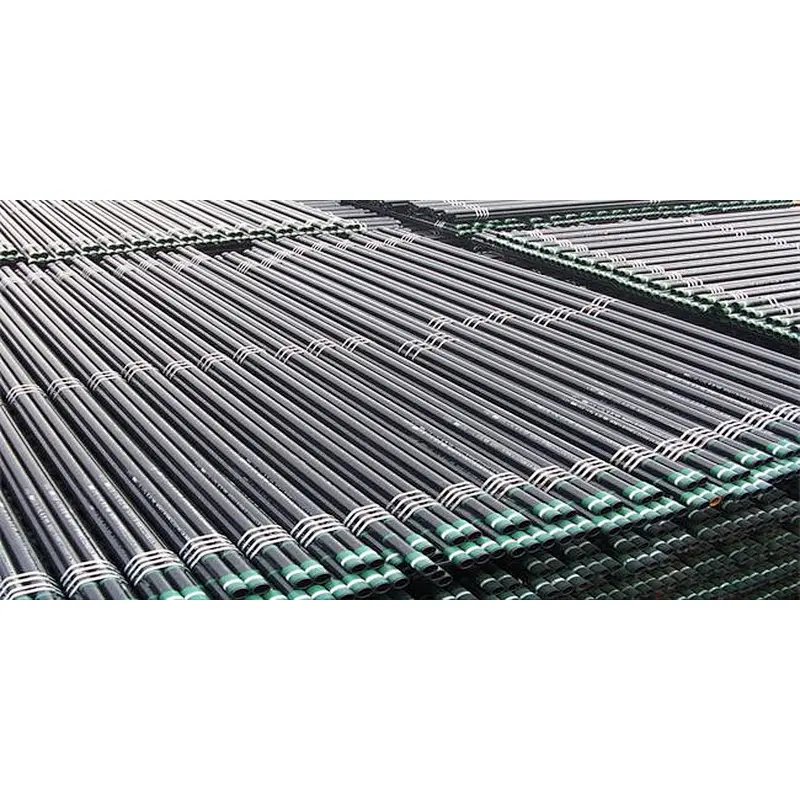

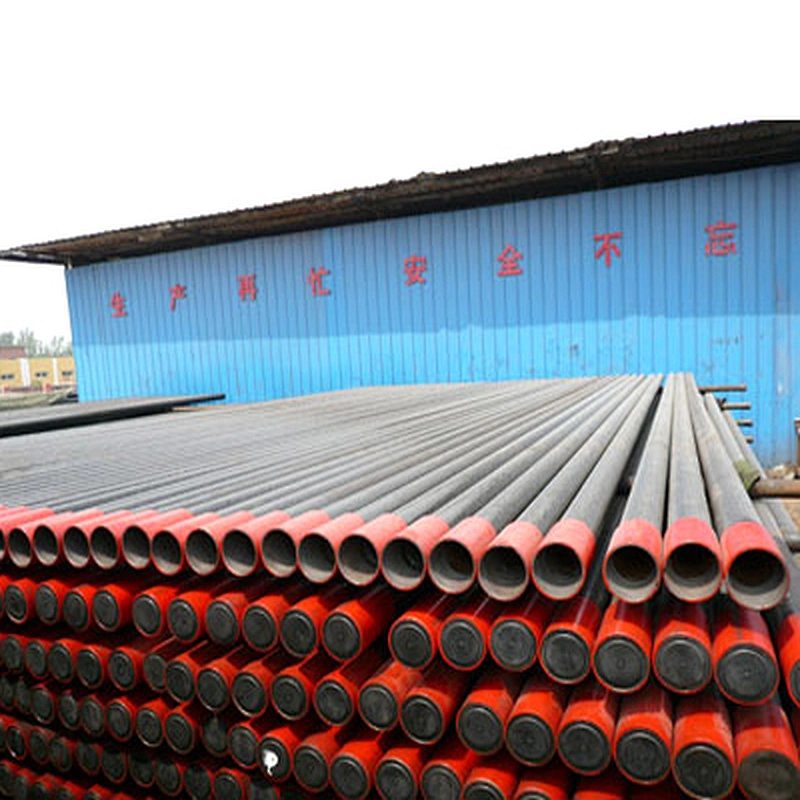

Casing, Tubing for Wells, Oil Pipe, Oil Pipeline
Usage:Tube for conveying gas, water, and oil in both and natural gas industries etc.
Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as"upsetting"is applied to thicken the pipes.
Quality Standard:
SY/T 6194 Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
API 5CT CASING AND TUBING
BS EN ISO 11960 Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
NF M87-207 Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
JIS G3439 SEAMLESS STEEL OIL WELL CASING, TUBING AND DRILL PIPE
IS : 4270Steel tubes for well spainend casing pipes
Steel Grade:H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125
Process: ERW and Seamless
Size:
Outer Diameter:
Tubing: OD 2 3/8"- 4 1/2"(60.3mm-114.30mm)
Wall Thickness: 0. 205"- 0.635"
Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
Connection: Casing: LTC, STC, BTC.Tubing: NUE, EUE.
End: Beveled, Square cut. And pipe protection cap specially for casing and tubing.
Surface: Corrosion proofing water based paint
Heat treatment: Normalized, Quencher+Temper
Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection, Nondestructive Test (Ultrasonic flaw detector, Eddy current flaw detector), Hydrostatic Test.
Mill Test Certificate: EN 10204/3.1B
